Dwide Recessed

Recessed workplace luminaire in three sizes. The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes light evenly in the reflector.

Fagerhult Logo 60px

Dwide Recessed

Eagle Lighting

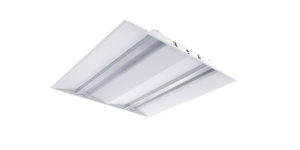

Dwide Recessed 600x600 CAROUSEL

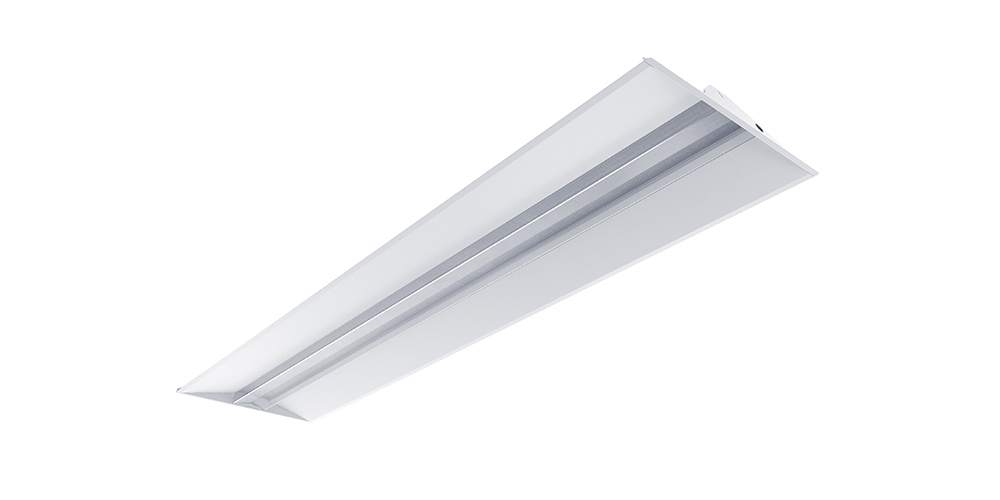

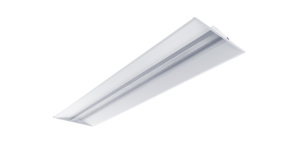

  • Dwide Recessed 300x1200 CAROUSEL

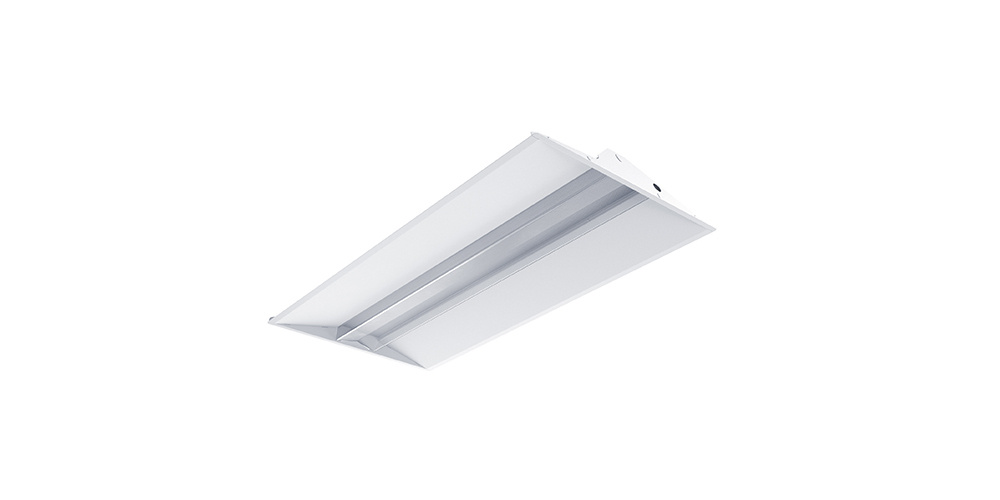

  • Dwide Recessed 300x600 CAROUSEL

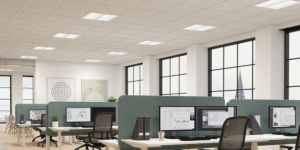

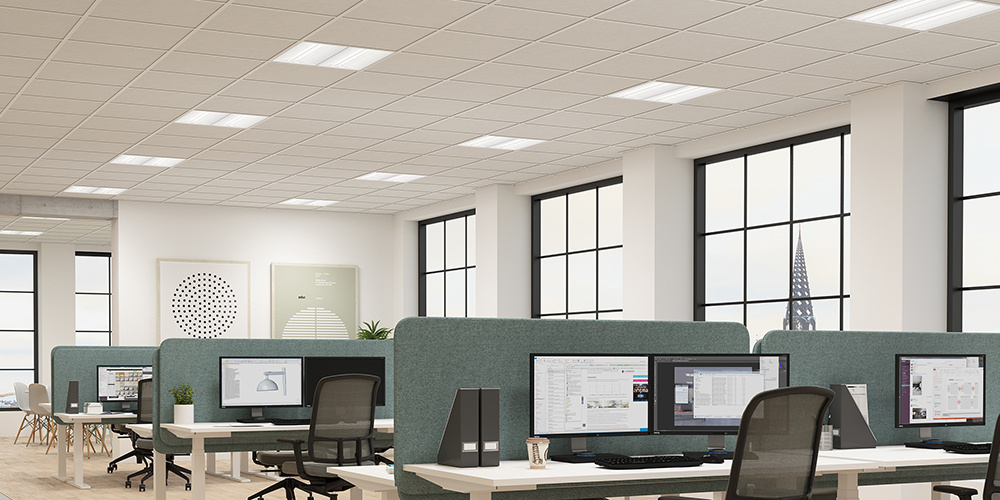

  • Dwide 600x600rec office CAROUSEL

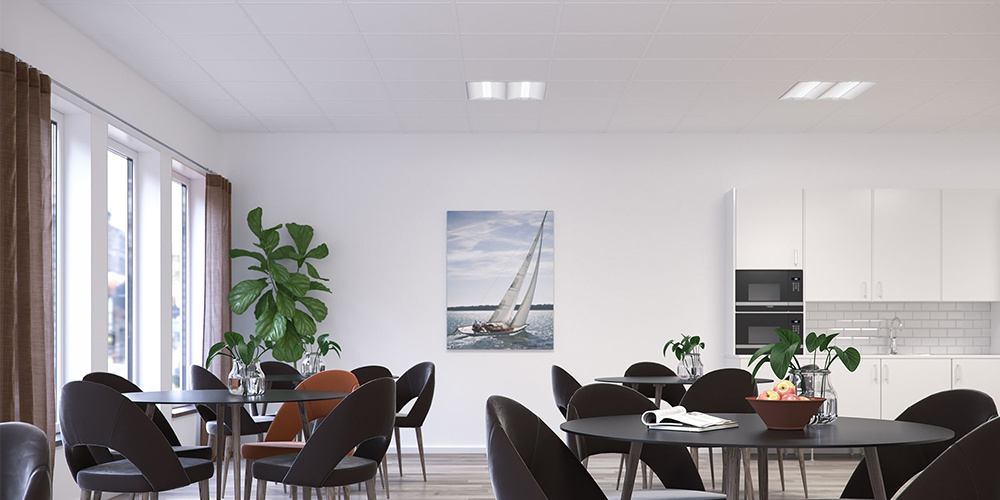

  • Dwide 600x600 office CAROUSEL

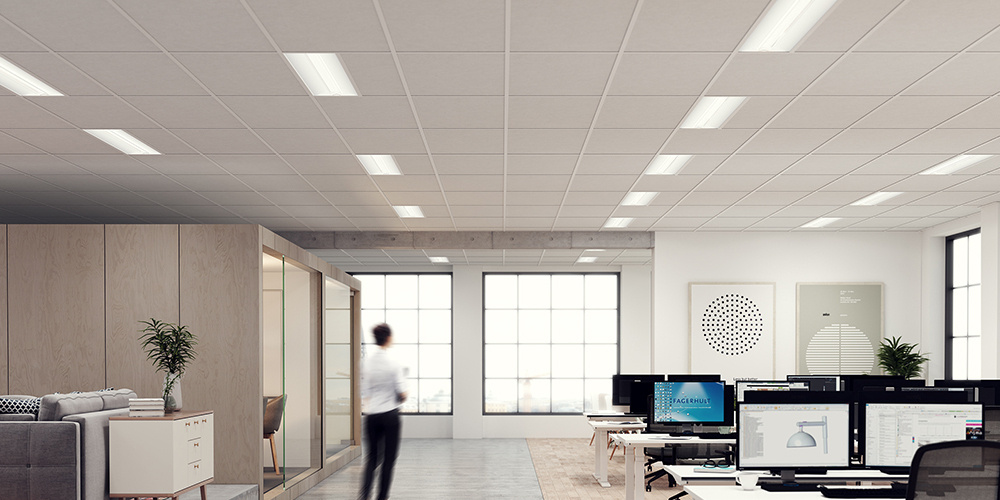

  • Dwide 300x1200 office CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS III
Symbol IP20
  • General Information

    General Information

    For full product details visit Fagerhult here.

    Recessed workplace luminaire in three sizes. The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes light evenly in the reflector.

    INSTALLATION
    Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings.
    VTB – for suspended ceilings with visible T-bars 15 or 24 mm.

    HB – recessed frame allows 600x600 to be installed in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm).

    CONNECTION
    Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

    DESIGN
    Luminaire body of white enamelled sheet steel (RAL 9016).

    LOUVRE
    Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) on the inside (PMMA). Light divider in acrylic (PMMA).

    MISCELLANEOUS
    Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.


    To discover more about the Dwide family visit: https://www.fagerhult.com/Campaigns/dwide-family/

    Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are complemented by smart corner and wall luminaires.
