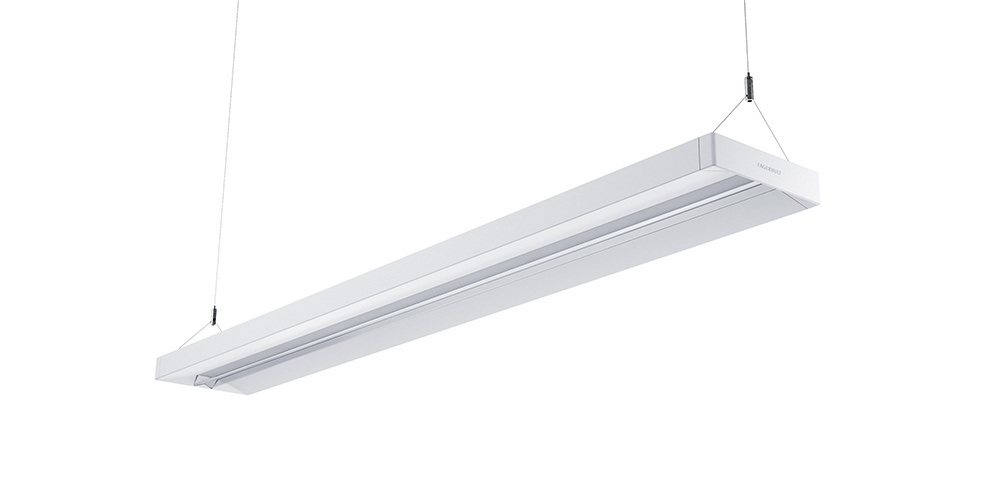

  • Dwide Pendant 1200 CAROUSEL

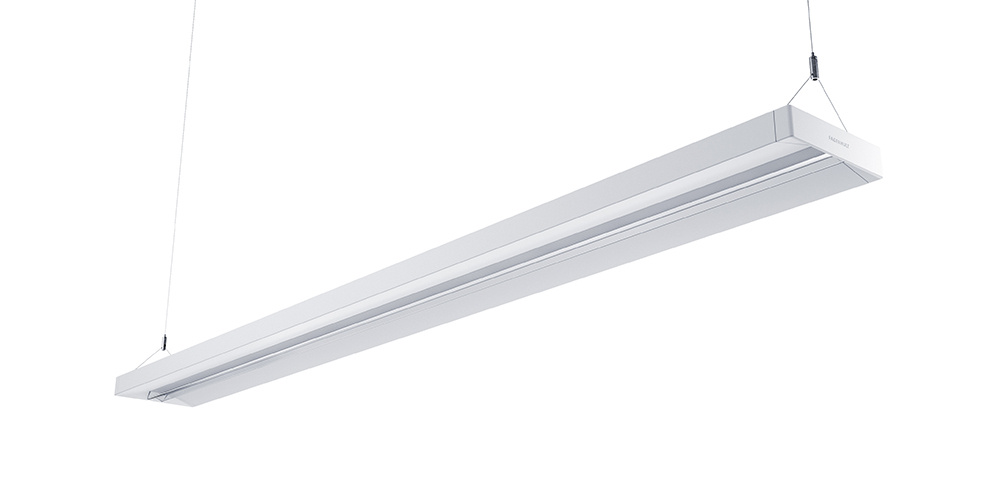

  • Dwide Pendant 1500 CAROUSEL

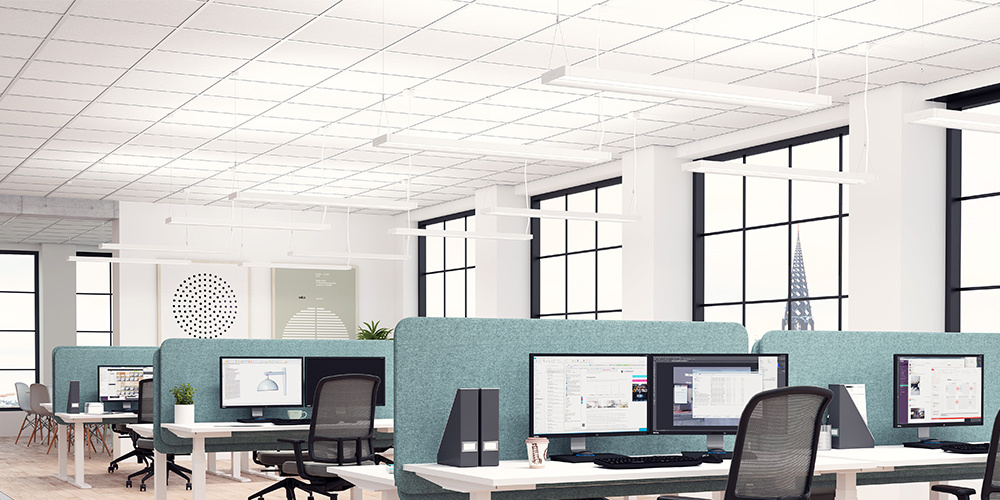

  • Dwide pendant Office CAROUSEL

Dwide Pendant

A pendant workplace luminaire that produces direct/indirect light. The delta louvre ensures high efficiency and optimal light comfort.

Print Icon Full product details
Fagerhult Logo 60px

Dwide Pendant

Eagle Lighting
Dwide Pendant 1200 CAROUSEL
  • Dwide Pendant 1500 CAROUSEL
  • Dwide pendant Office CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP20

  • General Information

    General Information

    For full product details please visit Fagerhult here.

    A pendant workplace luminaire that produces direct/indirect light. The delta louvre ensures high efficiency and optimal light comfort.

    INSTALLATION
    Wire pendant. Luminaire bracket with friction lock included in the luminaire.

    CONNECTION
    Connection takes place via 5-pole snap-in terminal block at the end of the luminaire and is concealed by a faceplate.

    DESIGN
    Metal luminaire body with die-cast metal ends, white (RAL 9016) finish. The top is covered by an opal diffuser for indirect light, which also works as a dust cover.

    LOUVRE
    Delta – Microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) inside. Light divider in acrylic (PMMA).

    LIGHT DISTRIBUTION
    Direct/indirect, 60/40 or 30/70.

    DIMMING
    DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.
    e-Sense Active – PIR sensor with presence and daylight control via DALI.
    e-Sense BrightSwitch – PIR sensor med lux threshold. Presence control On/Off. Absence dimming high/low available upon request.
    e-Sense Organic G3 – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.

    ACCESSORIES
    Fittings and additional components sold separately.

    MISCELLANEOUS
    CRI 90 alt CLO L100 100 000h available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time. Fagerhult Plus Luminaires are supplied fully-equipped with halogen-free connection cables and cords with eyelets.

    To discover more about the Dwide family visit: https://www.fagerhult.com/Campaigns/dwide-family/

    Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are complemented by smart corner and wall luminaires.
