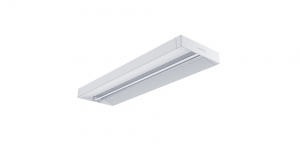

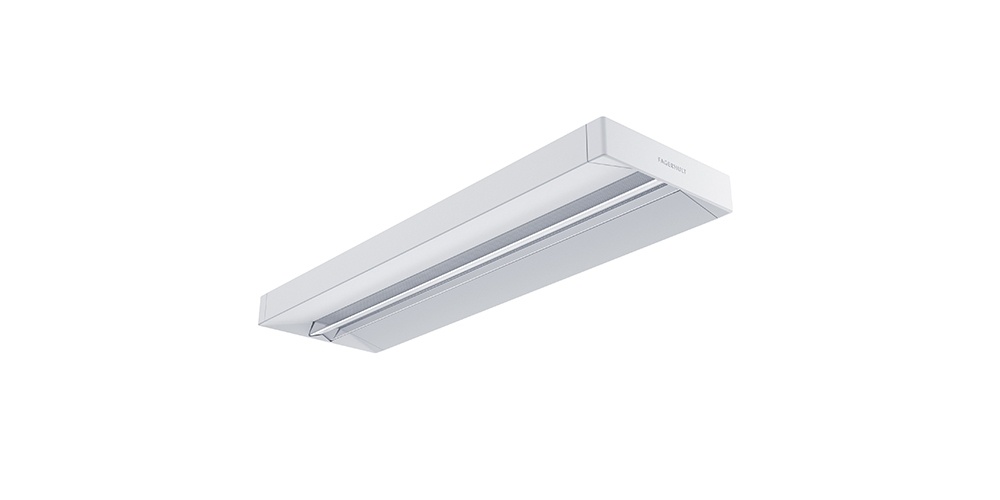

  • Dwide Ceiling Direct 600 CAROUSEL

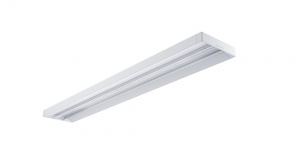

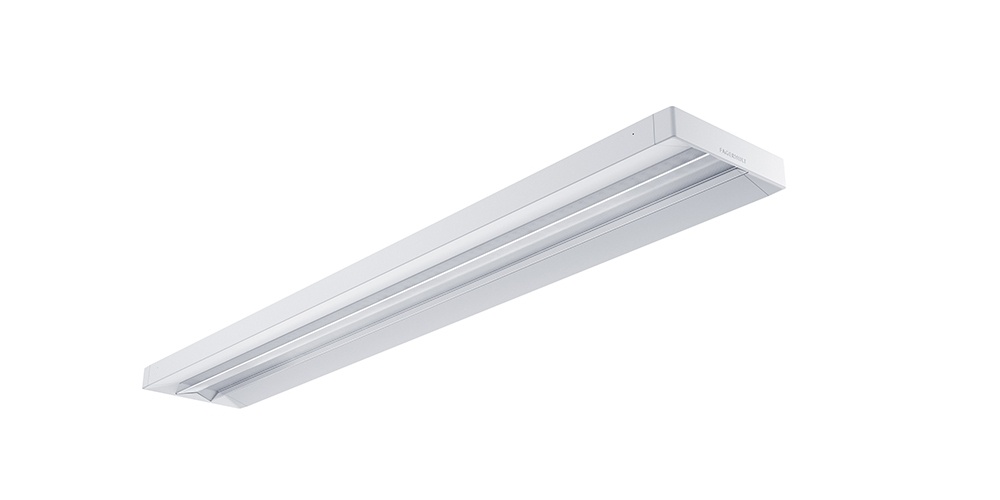

  • Dwide Ceiling Direct 1200 CAROUSEL

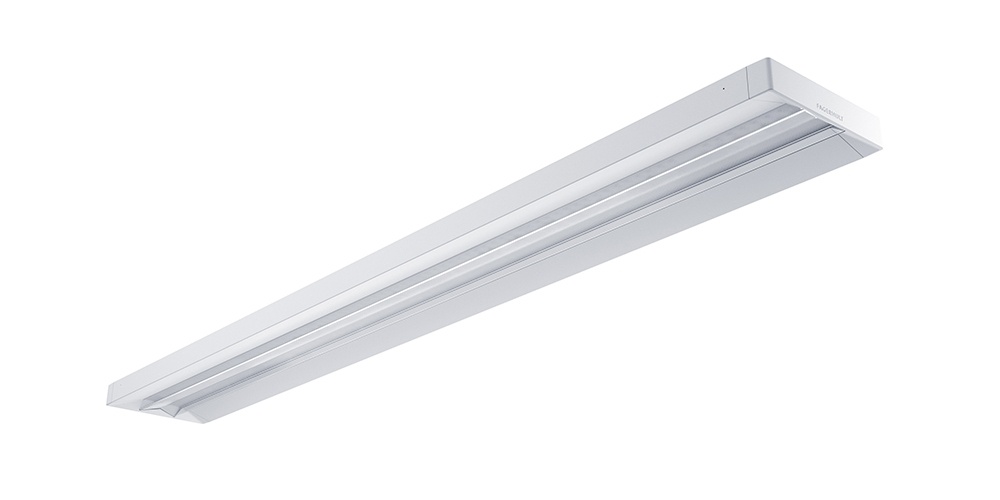

  • Dwide Ceiling Direct 1500 CAROUSEL

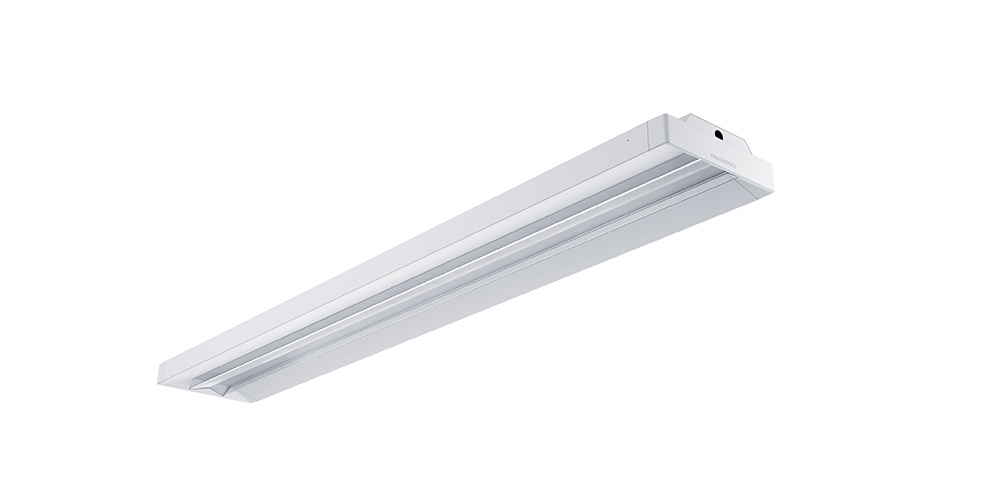

  • Dwide Ceiling Direct Indirect 1200 CAROUSEL

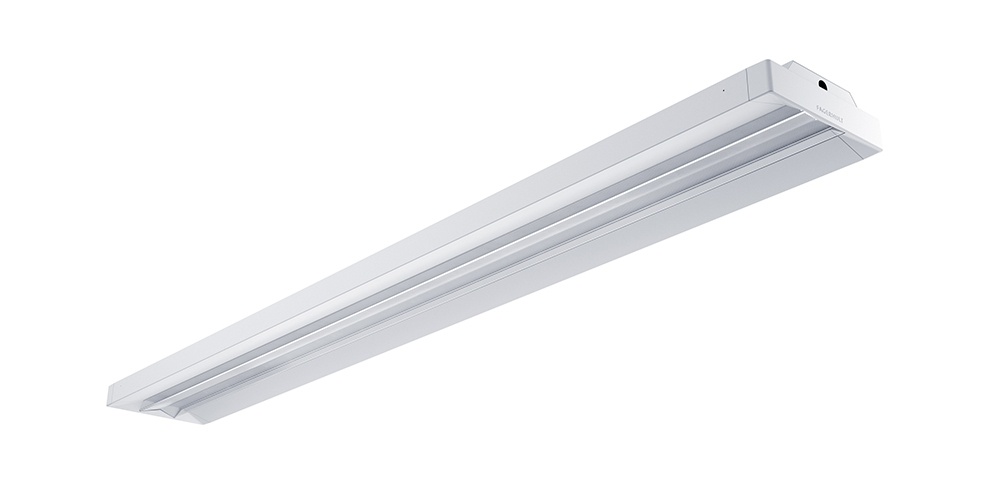

  • Dwide Ceiling Direct Indirect 1500 CAROUSEL

Dwide Ceiling

Ceiling mounted luminaire in three different sizes and with two different light distributions.

  • General Information

    For full product details visit: https://www.fagerhult.com/Prod...

    Ceiling mounted luminaire in three different sizes and with two different light distributions: Direct or Direct/Indirect 90/10.

    INSTALLATION
    Ceiling mounted or pendant cord. For installation in pendant cords, a suspension cord is required, see Accessories.

    CONNECTION
    Three Ø 13 mm cable entries fitted with blanking grommets on the top of the luminaire, see dimension diagram. Knockouts at each end for surface mounted mains cable. 5-way snap-in terminal block at one end of the luminaire, 1-phase through-wiring possible.

    DESIGN
    Metal luminaire body with die-cast metal ends, white (RAL 9016) finish. For indirect light, the top is covered by an opal diffuser, which also works as a dust cover.

    LOUVRE
    Delta – Microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) inside. Light divider in acrylic (PMMA).

    LIGHT DISTRIBUTION
    Direct 100 or Direct/Indirect 90/10.

    DIMMING
    DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.

    ACCESSORIES
    Fittings and additional components sold separately.

    DESIGNED BY
    Yellon.

    MISCELLANEOUS
    CRI 90 alt CLO L100 100 000h available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burning time.

    To discover more about the Dwide family visit: https://www.fagerhult.com/Campaigns/dwide-family/

    Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are complemented by smart corner and wall luminaires.
