Cleanroom IP65 LED
EL-CR65L-1103-200

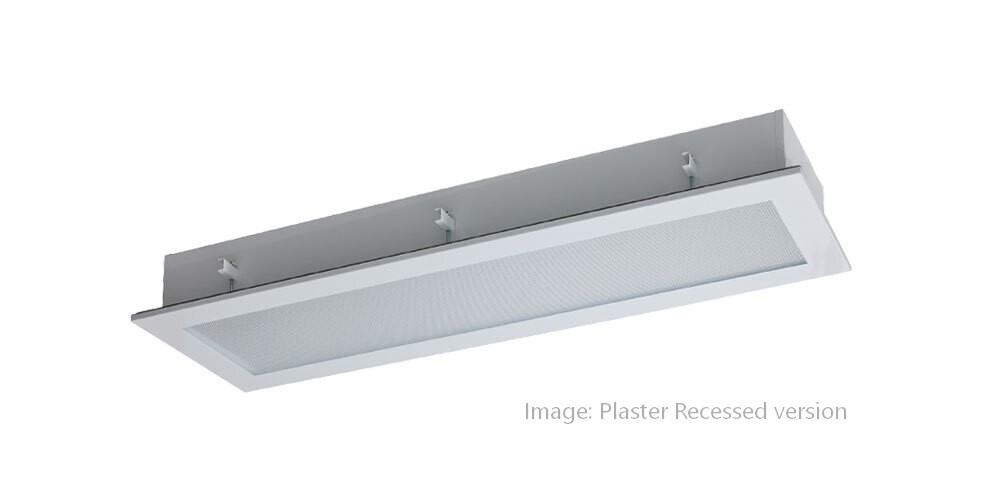

CLEANROOM IP65 LED Plaster/Sandwich panel Single Luminaire Bottom Access Direct 6000lm 39.8W LED Wide beam 4000K Ra90+ 240V Delta DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:1220mm W:350mm H:100mm IP65 IK08/5J White .
-
Technical Overview
-
Finish
White -
L = Length [mm]
1220 -
W = Width/Diameter [mm]
350 -
H = Height [mm]
100 -
CL = Recessing Length [mm]
- -
CW = Recessing Width/Diameter [mm]
- -
Weight [kg]
11.8
Nominal polar curve
-
-
Photometric Values
-
Control Type
DALI -
Ceiling Type/Mounting
Plaster/Sandwich panel -
Wattage [W]
39.8 -
CLO Enabled
No -
Final Wattage CLO [W]
- -
System Lumens [lm]
6000 -
Luminaire Lumens [lm]
4287 -
Efficacy [lm/W]
108
-
Lighting Type
Direct -
Target Spacing [m]
2.4 x 2.4 -
Target H Illuminance [lux]
600 -
LPD [W/m2]
6.91 -
NPD [W/sqm/100lux]
1.12 -
Beamwidth (FWHM)
- -
Optics Type
Delta -
UGR
-
-
-
Colour Quality
-
CCT [K]
4000K -
CCT1 [K]
4000K -
CCT2 [K]
- -
Other Light Colour
- -
CRI
Ra90+ -
COI Compliance
Compliant -
CLA 2.0
- -
M-DER
-
-
R9
74 -
Melanopic Ratio
0.74 -
Circadian Stimulus CS [%]
- -
Circadian Light [lux]
- -
TM-30 RF
91 -
TM-30 RG
101 -
M-EDI
-
-
-
Lifetime and Miscellaneous Parameters
-
LM80 Test Duration [hrs]
- -
L90B50 Lifetime [hrs]
- -
TM21 L70 Reported Lifetime [hrs]
-
-
L100B50 Lifetime (CLO) [hrs]
- -
TM21 L90 Reported Lifetime [hrs]
- -
SDCM Initial
3
-
