PROJECT



ARCHITECT/DESIGNER



TYPE NO.



TELEPHONE



QUANTITY



EMAIL

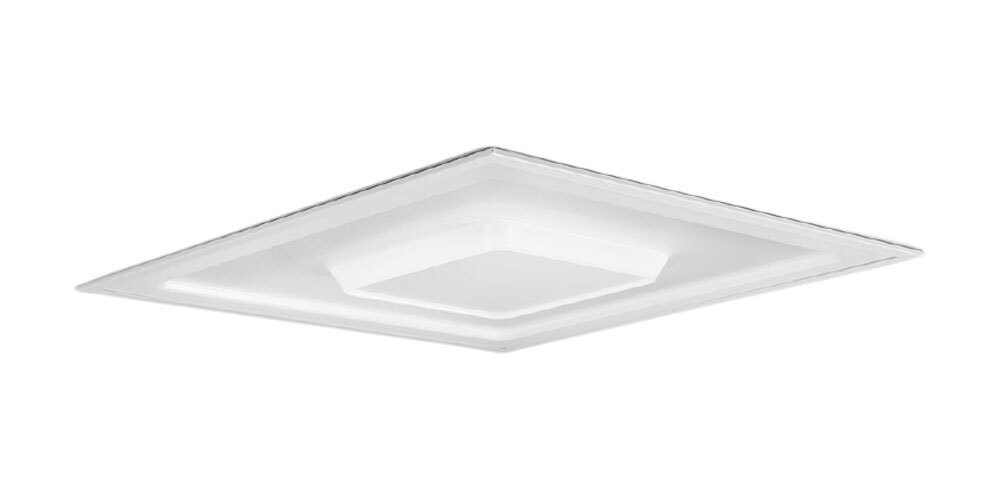

  • Clarico down CAROUSEL1

Clarico Down

EL-CLA-3151-200

CLARICO DOWN Recessed/T-bar Single Luminaire Bottom Access Direct 5502lm 34W LED Wide beam 4000K Ra90+ 240V Hybrid DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:593mm W:593mm H:56mm IP44 White .

Local manufacture
Eagle Lighting
  • Technical Overview

    Clarico Down Dimensions v1 300421
    • Finish
      White
    • L = Length [mm]
      593
    • W = Width/Diameter [mm]
      593
    • H = Height [mm]
      56
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      4.5
    Clarico Down Polarcurve v1 100521
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Wattage [W]
      34
    • CLO Enabled
      0
    • Final Wattage CLO [W]
      -
    • System Lumens
      5502
    • Luminaire Lumens [lm]
      4172
    • Efficacy [lm/W]
      122
    • Target Spacing [m]
      3.0m x 3.0m
    • Target H Illuminance [lux]
      410
    • LPD [W/sqm]
      3.8
    • NPD [W/sqm/100lux]
      0.97
    • Beamwidth (FWHM)
      -
    • Optics Type
      Hybrid
    • UGR
      19
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      72
    • Melanopic Ratio
      0.69
    • Circadian Stimulus CS [%]
      11
    • Circadian Light [lux]
      76
    • TM-30 RF
      92
    • TM-30 RG
      99
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      10000
    • L90B50 Lifetime (CLO) [hrs]
      -
    • TM21 L70 Reported Lifetime [hrs]
      >60001
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      43000
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint KitEL-ACC-210-000
Surface mount kit to suit 600x600EL-ACC-611-000
Plaster recess kit to suit 600x600EL-ACC-851-000
