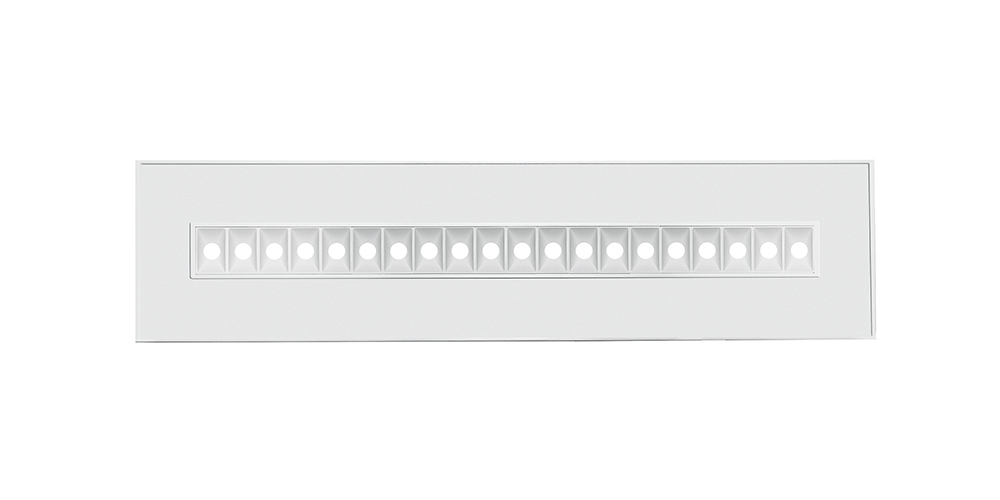

  • Circadia white CAROUSEL

Circadia DUO1 (white optics)

EL-CIR-1123-284

CIRCADIA WHITE OPTICS DUO1 Recessed/T-bar Single Luminaire Bottom Access Direct 3550lm 27W LED Wide beam Tunable White Ra90+ 240V White reflector DT8 Dali (TW) Class I Std AUS flex & plug 2.0m L:1494mm W:293mm H:60mm IP40 White .

Local manufacture
Eagle Lighting
  • Technical Overview

    • Finish
      White
    • L = Length [mm]
      1494
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      60
    • CL = Recessing Length [mm]
      0
    • CW = Recessing Width/Diameter [mm]
      0
    • Weight [kg]
      8.5
    Circadia White Duo v1 100521
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DT8 Dali (TW)
    • Wattage [W]
      27
    • CLO Enabled
      1
    • Final Wattage CLO [W]
      32
    • System Lumens
      3550
    • Luminaire Lumens [lm]
      2687
    • Efficacy [lm/W]
      101
    • Target Spacing [m]
      3.0x2.5
    • Target H Illuminance [lux]
      330
    • LPD [W/sqm]
      4.27
    • NPD [W/sqm/100lux]
      1.28
    • Beamwidth (FWHM)
      -
    • Optics Type
      White reflector
    • UGR
      19
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      Tunable White
    • CCT1 [K]
      Tunable White
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      74
    • Melanopic Ratio
      0.74
    • Circadian Stimulus CS [%]
      14
    • Circadian Light [lux]
      101
    • TM-30 RF
      91
    • TM-30 RG
      99
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime (CLO) [hrs]
      55000
    • TM21 L70 Reported Lifetime [hrs]
      >72001
    • L100B50 Lifetime (CLO) [hrs]
      72000
    • TM21 L90 Reported Lifetime [hrs]
      -
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit to suit 600x300EL-ACC-610-000
Surface mount kit to suit 1200x300
EL-ACC-510-000
Surface mount kit to suit 600x600
EL-ACC-509-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000


[**]: Surface mounting kits are 'standard white'. Other finish options available via customisation
