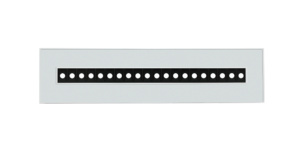

  • Circadia black CAROUSEL
  • Circadia BLK pods headon PRODUCT CAROUSEL

Circadia (black optical chambers)

Circadia is a new premium office luminaire family designed for workplace wellness, productivity & sustainability.

Print Icon Full product details
Local manufacture
Eagle Lighting

Circadia (black optical chambers)

Eagle Lighting
Circadia BLK pods PRODUCT CAROUSEL

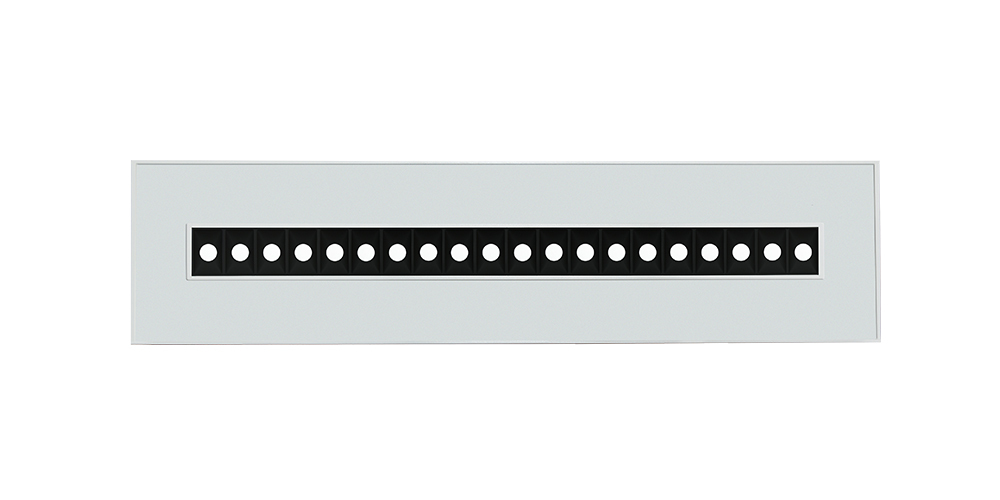

  • Circadia black CAROUSEL
  • Circadia BLK pods headon PRODUCT CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40
Symbol COI COMPLIANT
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
Symbol CLO

  • General Information

    General Information

    Product Design Registration: 202012496

    APPLICATION

    Circadia is a new premium office luminaire family designed for workplace wellness, productivity and sustainability.

    With its dual light component design consisting of a diffuse element and a central array of optical chambers, Circadia provides premium quality, low-glare illumination for the modern workplace.

    Delivering a sense of comfort, wellbeing and harmony for occupants with minimal energy consumption, Circadia is the product of choice for asset owners looking to achieve or enhance the WELL, Green Star, NABERS or other sustainability performance rating of their buildings.

    DESIGN

    Innovative optical chamber design delivers optimal wide beam distribution with low glare.

    Made from advanced microstructured film that offers controlled batwing light distribution, Circadia’s diffuse element allows for wider spacing with fewer luminaires required in the lighting array, making it a cost-effective solution for new fitouts and retrofit projects alike.

    Diffuse aperture also provides a pleasant transition between ceiling and light source.

    The product exceeds BCA 2019/J6 requirements via optimised beam distribution.

    OPTICS

    Black optical chambers with internal diffusers form the primary, task lighting component whilst an independent light source is used to create the diffuse peripheral component.

    CONTROL

    Organic Response Technologies Sensor Node 3 (SN3) is the standard sensor control offering with the Circadia fixed-CCT variants. Other sensor control methods are available upon request.

    CIRCADIAN LIGHTING

    The combination of LED chips with the right spectral distribution and an optimum beam distribution achieves ideal vertical illuminance levels with high Circadian Stimulus (CS) and Circadian Lighting (Cla) values.

    LIFETIME

    Constant Light Output (CLO) feature comes as standard across the range and ensures no lumen depreciation for the lifetime of the product.

    LIGHT QUALITY

    CRI90+ as standard with R9>50, COI compliant (4000K), initial colour consistency better than 3 SDCM.

    INSTALLATION

    Easy to install and an attractive option at only 60mm thickness, the Circadia is suitable for locations where limited ceiling depth is a concern.

    MOUNTING OPTIONS

    • Recess Kit
    • Surface Mounted Kit

    CONTROL OPTIONS

    The below controls options are standard options available for this product. Further customisation may be possible via customisation.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-044
    DALI/STD terminal block-244
    Organic Response SN3-974


    Key Family Details

    • Optical System:
      Hybrid black optical chambers and diffuser
    • Mounting Type:
      Exposed T-Bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finish options via customisation
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      50+
    • COI Compliant:
      Yes (=<2.7)
    • Melanopic Ratio:
      >0.70
    • Circadian Stimulus:
      CS [%] (*) 12
    • Circadian Light:
      Cla [lux] (*) 84
  • Technical Information

    Circadia Dimensions v1 300421
    • EL-CIR-1114 … -1116
      L = 1194mm; W = 293mm3; C = 60mm; Weight = 6.8kg
    • EL-CIR-1117 … -1118
      L = 1494mm; W = 293mm; C = 60mm; Weight = 8.5kg
    Circadia black polarcurve v1
    Nominal Polar Curve

    • EL-CIR-1114 … -1116
      L = 1194mm; W = 293mm3; C = 60mm; Weight = 6.8kg
    • EL-CIR-1117 … -1118
      L = 1494mm; W = 293mm; C = 60mm; Weight = 8.5kg
    Circadia Dimensions v1 300421
    Circadia black polarcurve v1
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit to suit 600x300EL-ACC-896-000
Surface mount kit to suit 1200x300EL-ACC-897-000
Surface mount kit to suit 1500x300EL-ACC-898-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000

[**]: Surface mounting kits are 'standard white'. Other finish options available via customisation
