Aureled Hygiene
-
General Information
Date Updated: 01 March 2024
APPLICATION:
The Aureled Hygiene IP54, an extension of the successful Aureled platform, is designed specifically for healthcare environments. It meets the high standards required in such settings, providing exceptional lighting performance suitable for a variety of applications.
DESIGN:
With an IP54(*), (**) rating, the Aureled Hygiene is not only ideal for healthcare facilities but also for HACCP environments. It boasts a combination of advanced lens technology, LED innovations, and unique design features, ensuring a well-balanced and pleasant lighting atmosphere. Proudly manufactured in Australia, it sets a benchmark in global best practices.
OPTICS:
Featuring a state-of-the-art delta diffuser and a masking agent, the Aureled Hygiene effectively eliminates LED glare and controls light distribution, ensuring a comfortable visual experience without the distraction of micro points or excessive luminance.
CONTROLS:
The Aureled Hygiene introduces efficiency in lighting design with its standard Constant Light Output (CLO). Organic Response SN3 and various other sensor options are readily available, providing flexibility and adaptability in lighting control.
CIRCADIAN LIGHTING:
Aureled Hygiene's superior lighting quality is integral to promoting wellness, productivity, and satisfaction in any workspace. Its superior performance characteristics create an optimal visual environment that enhances the experience of occupants.
INSTALLATION:
Its slim profile makes the Aureled Hygiene IP54 an ideal choice for installations where ceiling recess depth is limited but the advantages of back-lit luminaires are desired.
CONTROL OPTIONS:
Standard control options are available with the Aureled Hygiene, and there is potential for further customisation. Contact your customer service representative for additional information and options.
VARIATION SUFFIX DALI/STD terminal block (Standard) -244 Non-dim -044 Maintained Emergency -8xx DALI Monitored Emergency -8xx Organic Response SN3 (**) -974 (*) IP54 from below, IP30 from the ceiling side.
(**) The IP rating becomes IP20 if the OR SN3 node is integrated. A remote node can be used to maintain IP54 on the fitting. The OR node itself is IP20.
NOTES- CLO enabled as standard
- Tuneable White option available
- Surface Mount kit available
- Plaster Recess Kit available
- Restraint kit available
N.B. The Aureled Hygiene can be customised for MRI applications. Please contact your Eagle Lighting representative for further information.
Key Family Details
-
Optical System:
Glare reducing Delta diffuser -
Mounting Type:
Exposed T-Bar Recessed -
Finish Options:
Standard white -
System Warranty:
5 years -
CCT:
4000K -

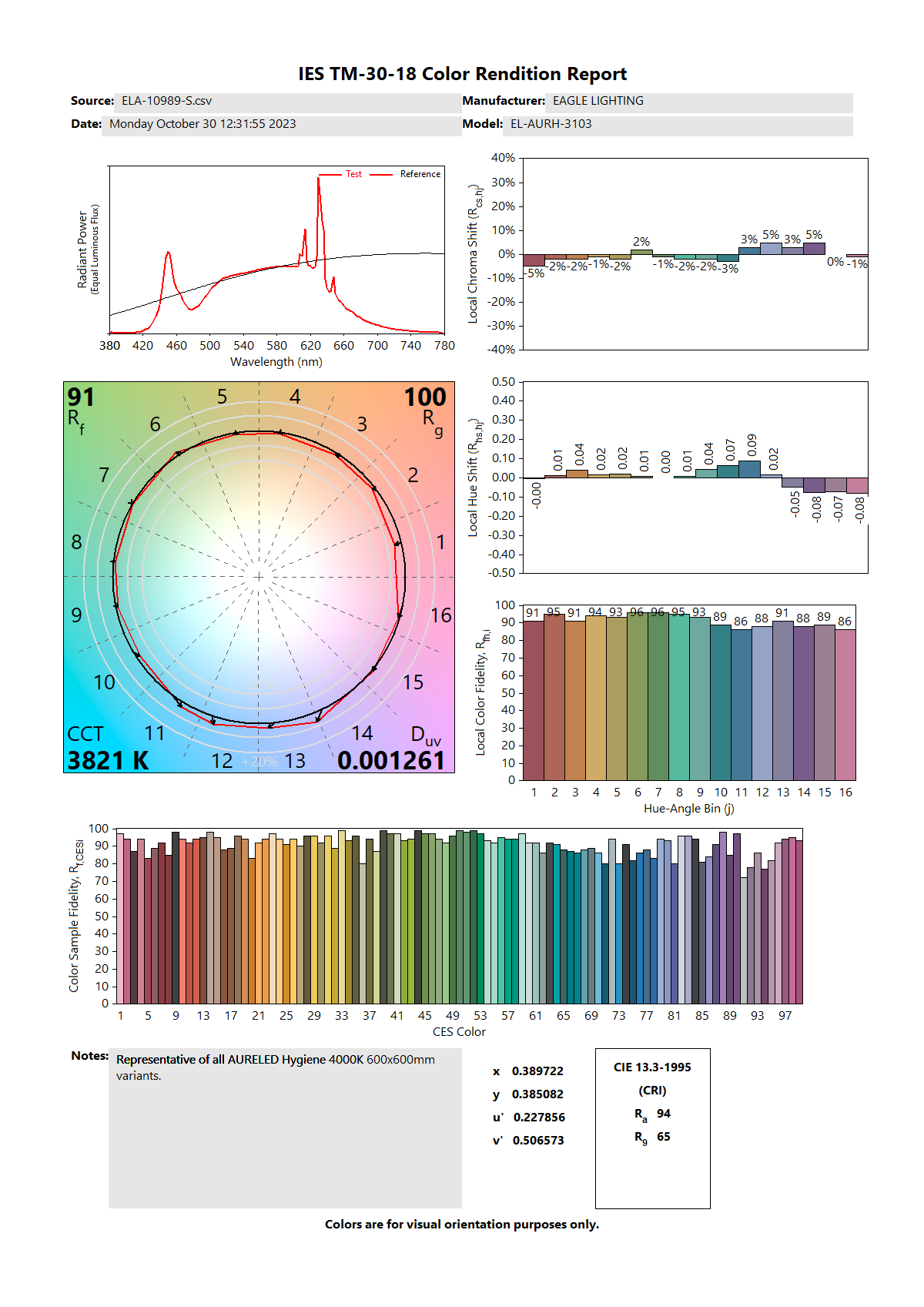

CRI (Ra):
90+ -
R9:
65+ -
COI Compliant:
Yes (COI<=2.7)
-
Technical Information
-

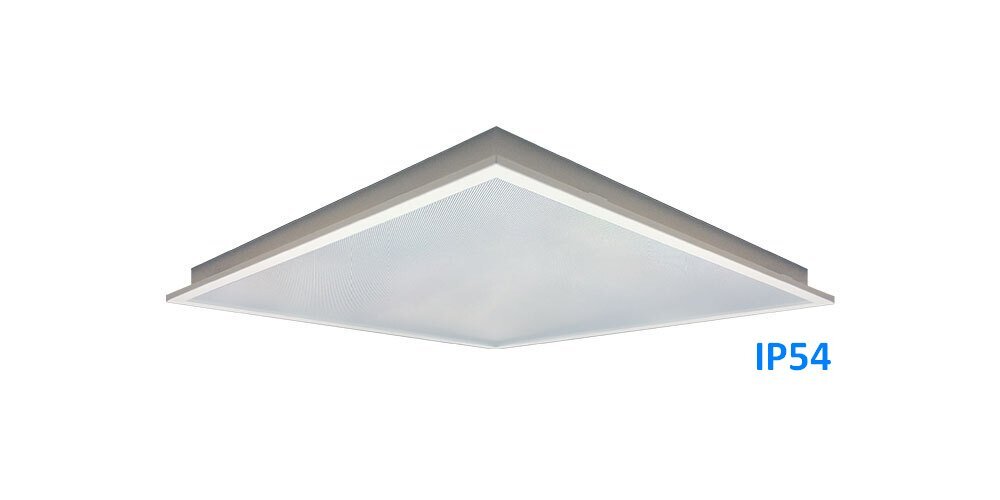

ETB 600 x 600 (mm)
L: 595mm; W: 595mm; H: 53mm; Weight: 4.5kg -

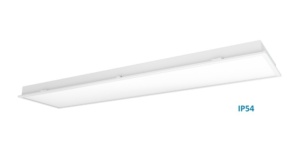

ETB 1200 x 300 (mm)
L: 1195mm; W: 295mm; H: 56mm; Weight: 4.5kg

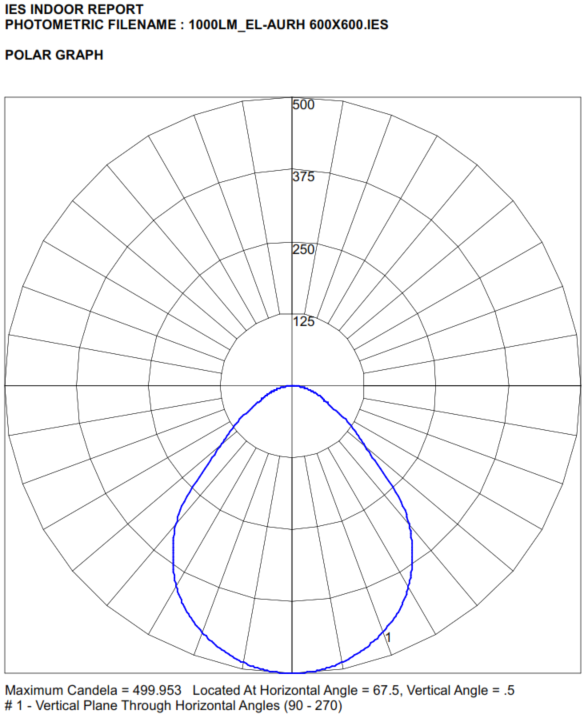

Normalised (1000lm) Polar Curve
Normalised Polar Curve for AURH 600x600 Variants
Normalised (1000lm) Polar Curve
Normalised Polar Curve for AURH 1200x300 Variants
-
Product Code
Accessories
DESCRIPTION | CODE |
|---|---|
| Restraint Kit - 4 x gripple, 2 x 2m wire | EL-ACC-210-000 |
| Surface mount kit to suit 600x600 | EL-ACC-611-000 |
| Surface mount kit to suit 1200x300 | EL-ACC-612-000 |
| Plaster recess kit 600x600 | EL-ACC-851-000 |
| Plaster recess kit 1200x300 | EL-ACC-852-000 |
