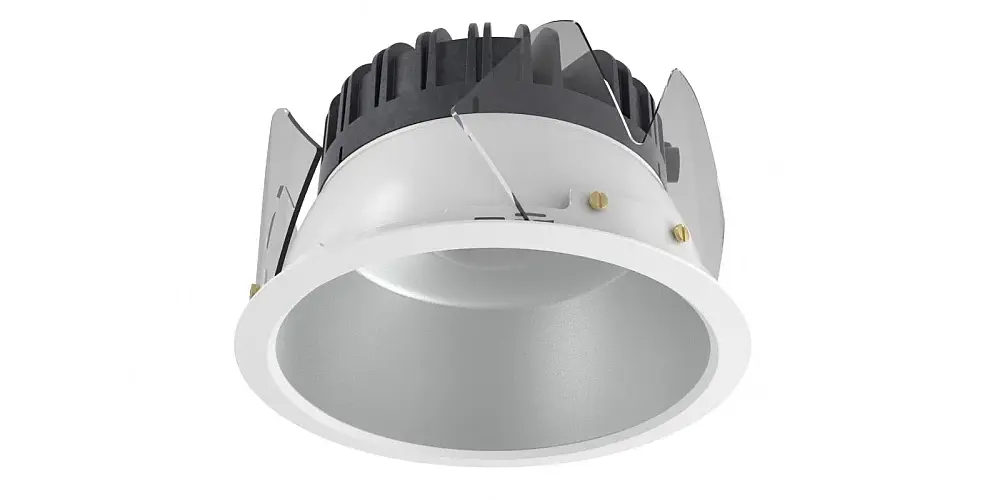

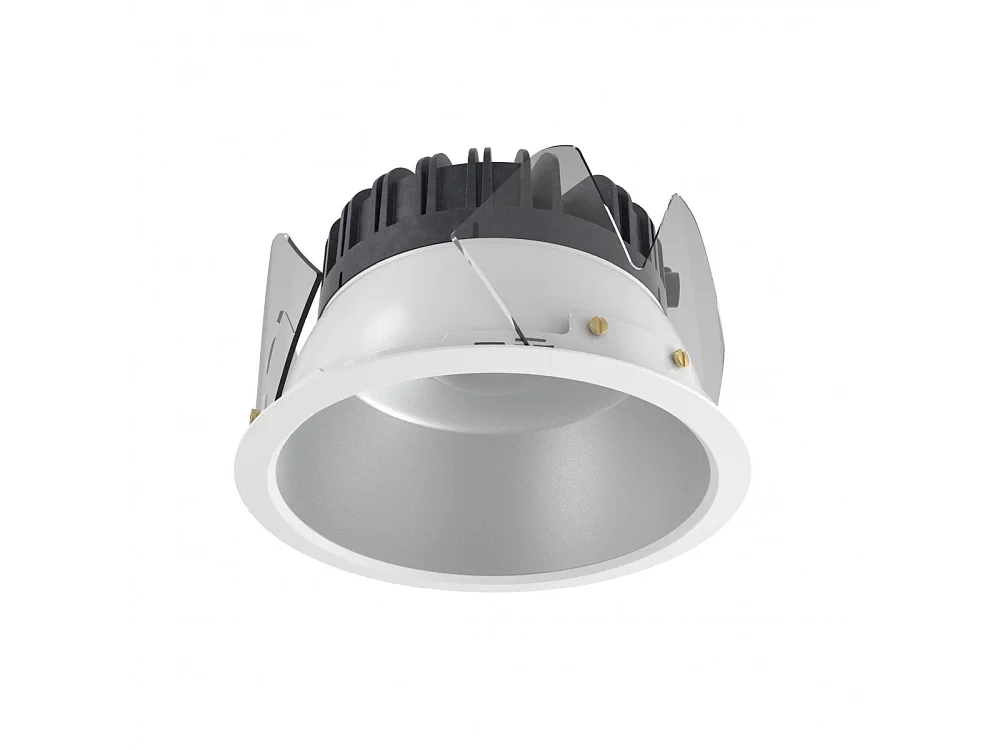

Non-ferrous recessed downlight for specialist MRI rooms, delivering high visual comfort with a clean, slim-bezel appearance.

Design

• Slim bezel 11mm, finished white(closest RAL9003)

• Precision injection-moulded semi-specular reflector

• Graphite-embedded heatsink for thermal stability

• IP44 as standard

Optics

• Matt (semi-specular) reflector with lens optic for glare control

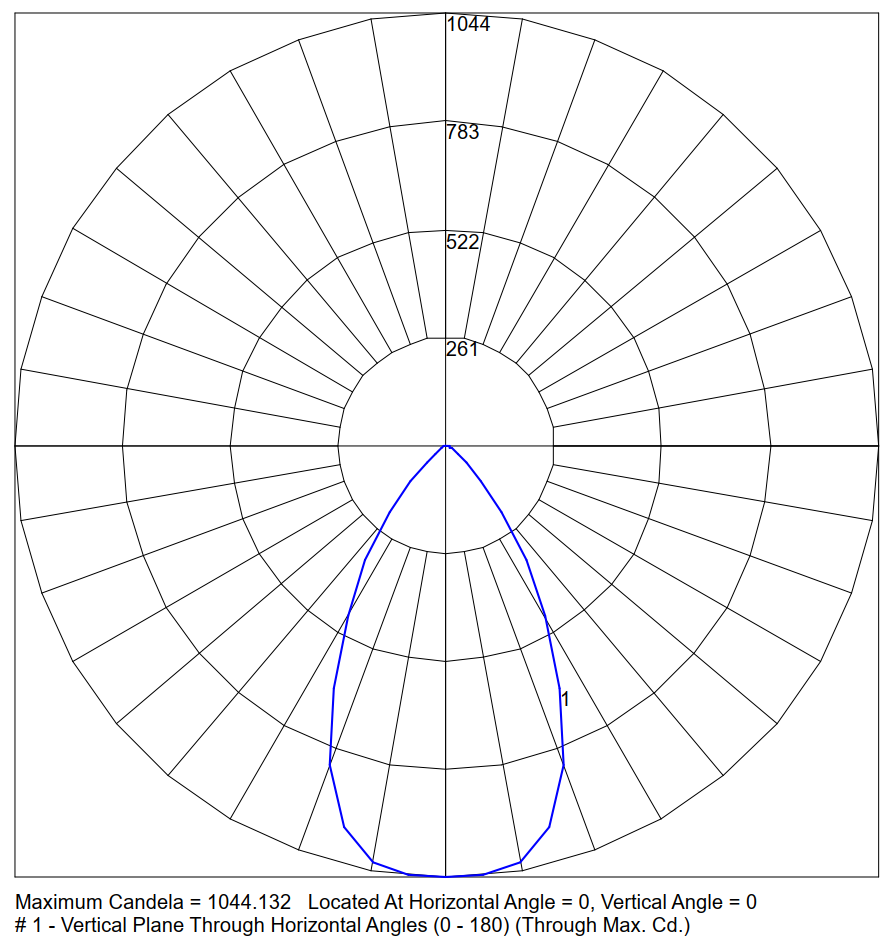

• Medium beam distribution

• Light output range 1712–2652lm

• Efficacy up to 111lm/W depending on configuration and driver loading

• CCT options 3000K or 4000K

• Colour quality Ra90+

Controls

• 1-10V analogue drivers suitable for MRI applications ordered separately

• Drivers must be loaded to minimum 75% capacity

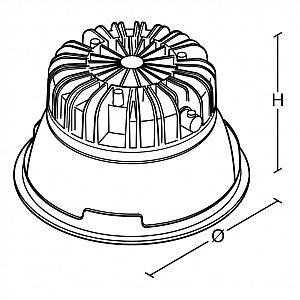

Installation

• Recessed mounting

• Cutout Ø165mm

• Suitable for ceiling thickness 5–50mm

Additional Information

• Specify output, CCT and MRI driver kit requirements when ordering
