PROJECT



ARCHITECT/DESIGNER



TYPE NO.

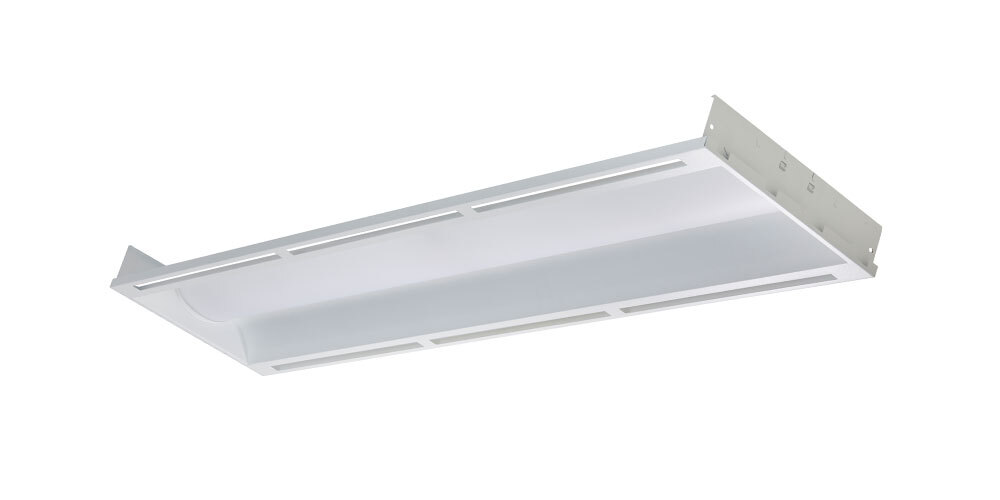

  • Enviro Evoline returnair CAROUSEL

Enviro Evoline 300 Return Air

The Enviro Evoline 300 Return Air has been designed to meet the demanding requirements for office lighting in Australia and New Zealand.

Local manufacture
Eagle Lighting

Enviro Evoline 300 Return Air

Eagle Lighting
Enviro Evoline returnair CAROUSEL
Symbol LED
Symbol AIR ENABLED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol COI COMPLIANT
Symbol TUNEABLE
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION
    The Enviro Evoline 300 Return Air has been designed to meet the demanding requirements for office lighting in Australia and New Zealand.

    DESIGN
    With its sleek, minimal and modern look it has one of the best vertical illuminance performances within the ELA family of recessed luminaires. The molded end caps, which seamlessly join the diffuser to the body complete this locally designed, tested and manufactured luminaire.

    OPTICS
    The extruded central diffuser offers good glare control whilst the curved back reflector spreads light to achieve a wide beam without causing glare and to help reduce contrast on the ceiling.

    CONTROL
    Non-dim and DALI as standard. Various control options available via customisation including Organic Response and Tuneable White

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)-220
    Organic Response SN3-950

    INSTALLATION

    • T-Bar as standard.
    • Plaster Recessed kits available.
    • Restraint Kit available.

    MOUNTING OPTIONS
    Plaster Recessed via Recessing kit

    Key Family Details

    • Optical System:
      Opal diffuser + Secondary reflector
    • Mounting Type:
      Exposed T-Bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      50+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.70+
  • Technical Information

    Enviro Evoline Return Air 300 Dimensions v1 300421
    • EL-EVA-1180/ -1183
      L: 592mm; W: 292mm; H: 67mm; Weight: 2kg
    • EL-EVA-1181/ -1184
      L: 1192mm; W: 292mm; H: 67mm; Weight: 2.7kg
    • EL-EVA-1182/ -1185
      L: 1492mm; W: 292mm; H: 67mm; Weight: 3.5kg
    Enviro Evoline Return Air Polarcurve v1 100521
    Nominal Polar Curve

    • EL-EVA-1180/ -1183
      L: 592mm; W: 292mm; H: 67mm; Weight: 2kg
    • EL-EVA-1181/ -1184
      L: 1192mm; W: 292mm; H: 67mm; Weight: 2.7kg
    • EL-EVA-1182/ -1185
      L: 1492mm; W: 292mm; H: 67mm; Weight: 3.5kg
    Enviro Evoline Return Air 300 Dimensions v1 300421
    Enviro Evoline Return Air Polarcurve v1 100521
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
